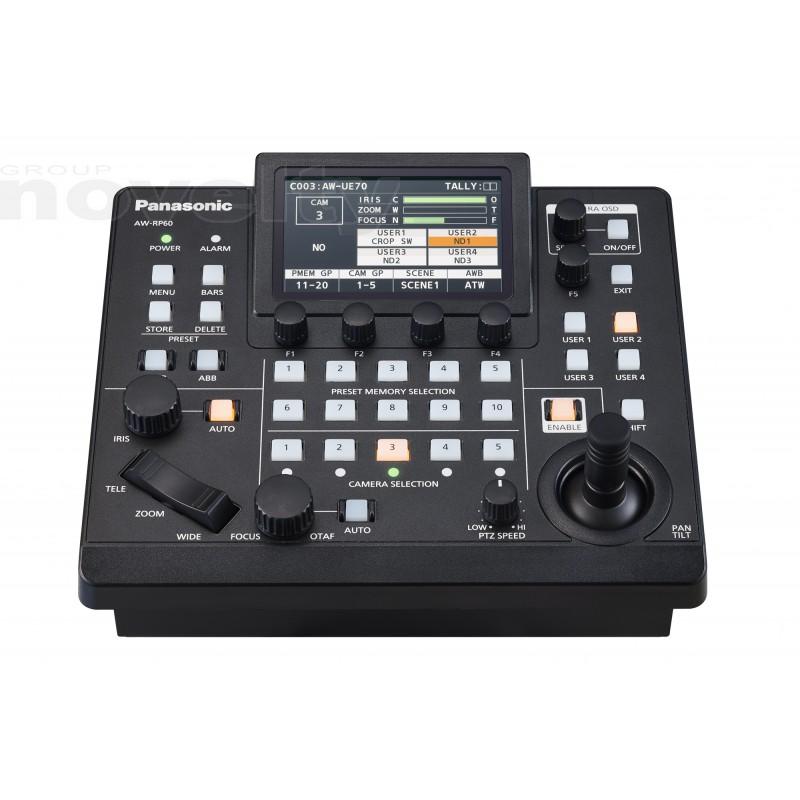

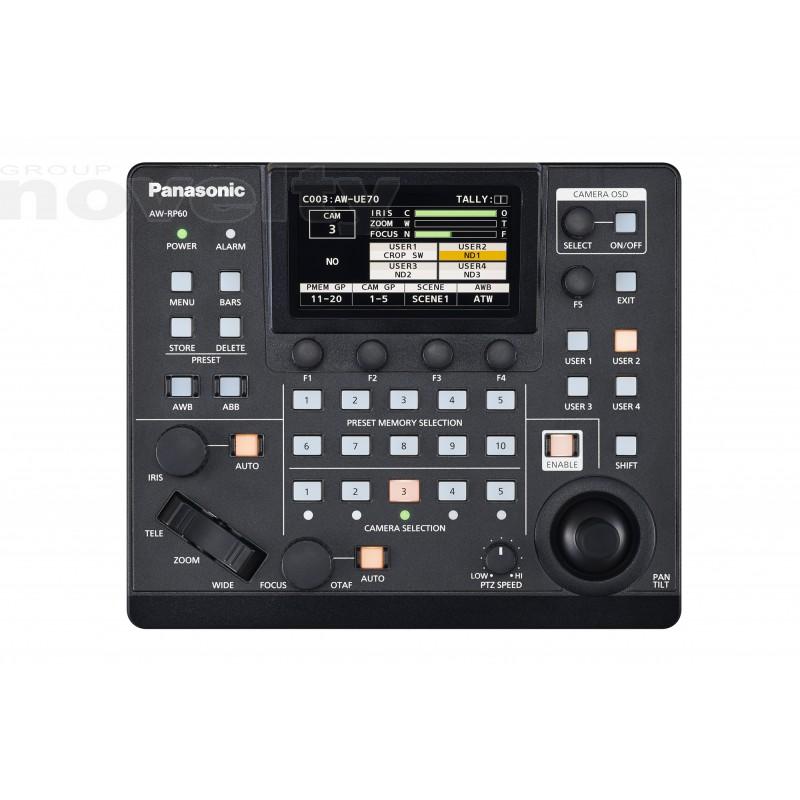

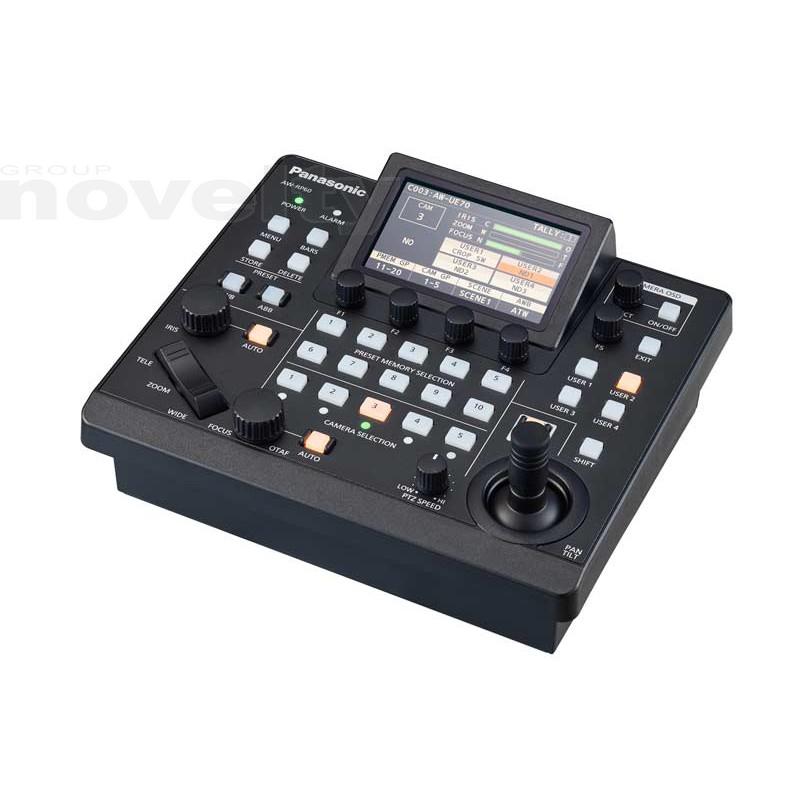

PANASONIC AWRP60
Contrôleur de caméra à distance compact




Descriptions détaillées
Spécifications- Power Requirements : 12 V DC (10.8 V to 13.2 V)
- PoE* : IEEE802.3af standard: 42 V to 57 V DC (Camera Input)
- Current Consumption : 0.9 A (XLR connector input), 0.3 A (PoE power supply)
- Mass : 1.5 kg (3.31 lbs)
- Dimensions (W x H x D) (mm) : W 210 mm x H 92 mm x D 177 mm (excluding protrusions)
- Dimensions (W x H x D) (inch) : 8-9/32 inches x 3-5/8 inches x 6-31/32 inches (excluding protrusions)
- Display : 3.5-type liquid crystal (QHD 960 x 540)

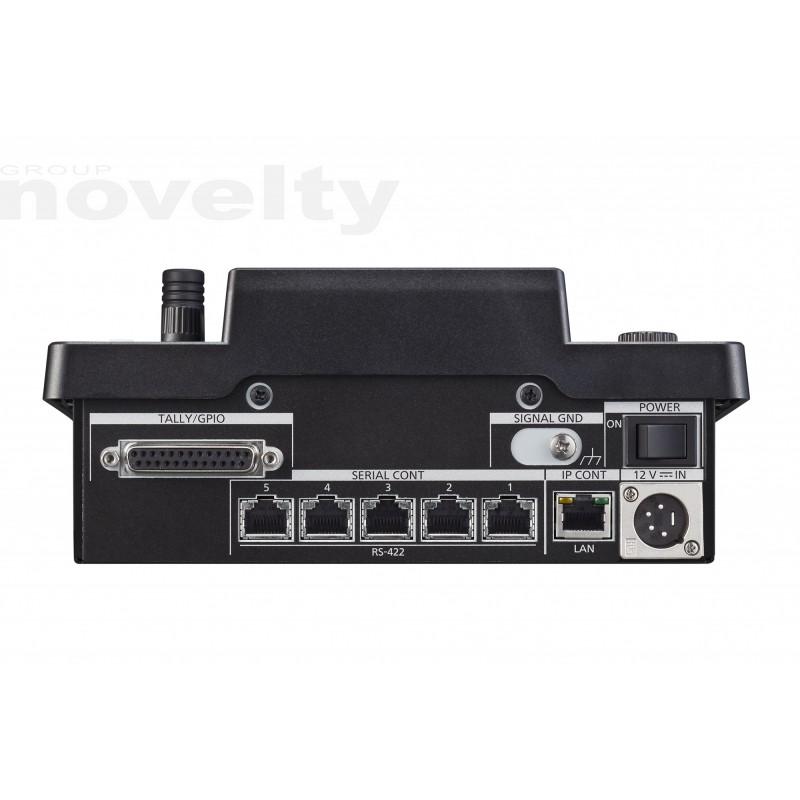

- Connection Specifications :
- No. of Connectable Cameras :
- 200 (IP), 5 (RS422)
- *Up to 100 for cameras other than the AW-UE150
- Remote Camera Selection :
- 5 (6 to 200 controlled from the LCD)
- No. of Camera Groups :
- 20 (10 units/group)
- No. of Memory Presets :
- 100
- No. of Connectable Cameras :
Informations
- Référence : AWRP60
- Codart : AWRP60
- Télécharger nos catalogues PDF
Propriétés techniques
- Dimensions unitaires : 210 x 92 x 177 mm
- Poids unitaire : 1,5kg
Documents à télécharger
Fiche technique : panasonic-aw-rp60-brochure
Manuel technique : panasonic-aw-rp60-manuel
